基本原理
BASIC PRINCIPLE
热解是指将有机物在无氧或缺氧状态下进行加热蒸馏，使有机污染产生裂解，经冷凝后形成各种新的气体、液体和固体，从中提出燃料油、油脂和燃料气的过程。
Pyrolysis refers to the process of heating and distilling organic matter in the absence of oxygen or such a limited supply, causing organic pollution to produce pyrolysis and forming various new gases, liquids and solids after condensation, from which fuel oil, grease and fuel gas are put forward.

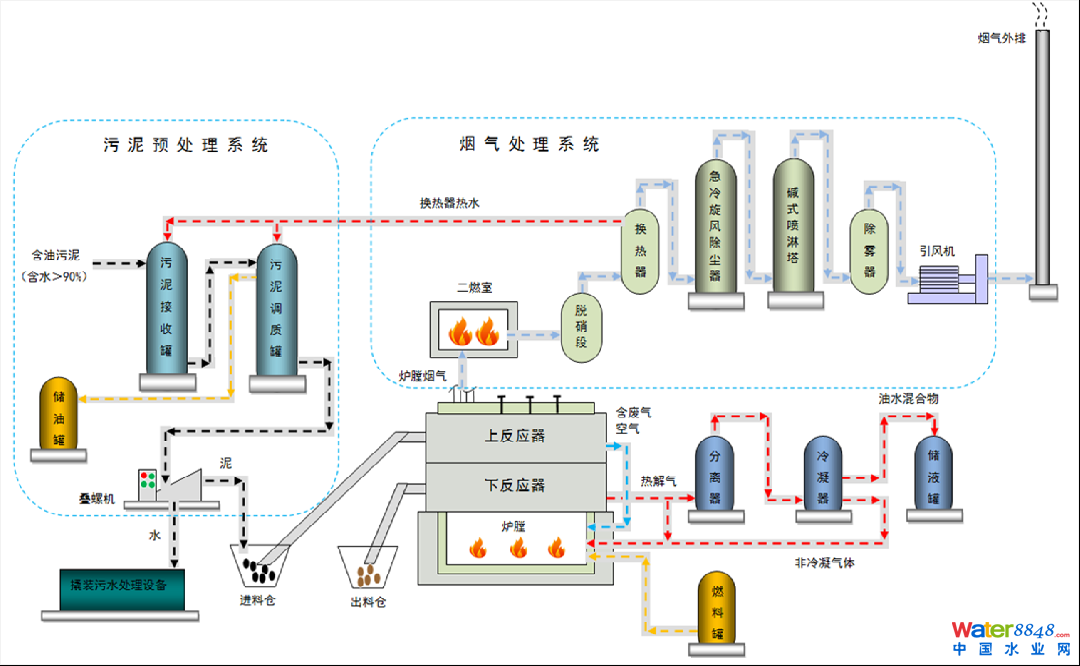

油泥热解工艺流程图
The flow chart of oily sludge pyrolysis process
技术特点
TECHNICAL FEATURES- 干燥迅速、热利用效率高；
- 二噁英及挥发性有机物产生量少；
- 粉尘爆炸风险小；
- 全密闭连续运行、无二次污染；
- 全自动控制、操作简便安全性好；
- 集成度高、占地省、投资及运行费用低。
- Rapid drying and high heat utilization efficiency;
- Low production of dioxins and volatile organic compounds;
- Low risk of dust explosion;
- Totally enclosed, continuous operation without secondary pollution;
- Full automatic control, operation convenience and safety;
- High integration, smaller area occupied, lower investment and running expense.
应用案例

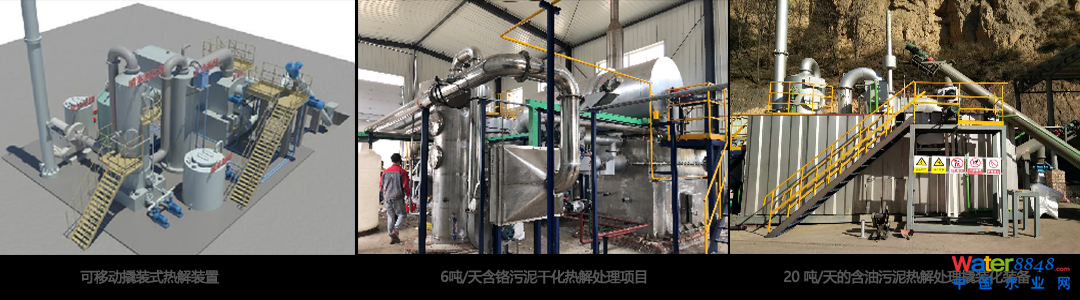

APPLICATIONS- 富国皮革（阜新）含铬污泥干化热解项目（6 吨 / 天）
- 延长石油（延安）油泥热解撬装设备（20 吨 / 天）
- 中石化江苏油田含油污泥热解处置中心（4.4 万吨 / 年）
- 中石油大庆油田含油污泥无害化处理（10 万吨 / 年）
- Pyrolysis of Chromium sludge in Fuxin (6 t/d)
- The Skid-mounted device for Pyrolysis of oily sludge located in Yanchang Petroleum ( 20 t/d )
- Pyrolysis of oily sludge in SINOPEC of Jiangsu oilfield (44000 t/a )
- Harmless treatment of oily sludge in Daqing Oilfield of CNPC (100000 t/a )
- 废气：达到《石油化学工业污染物排放标准》（GB31571-2015）标准和国家排放标准《危险废物焚烧污染控制标准》（GB 18484-2001 ）
- 废水：设备冷凝水循环使用，其他少量废水经处理后，进入油田水处理系统。
- 废渣：含油率符合相关标准，重金属含量达到国家排放标准。
- 处理后的污泥可垫井场、铺路、作为建筑材料使用：符 合 陕 西 省 地 方 标 准《 含 油 污 泥 处 置 利 用 控 制 限 值》（DB61T_1025-2016）中的要求和黑龙江《油田含油污泥综合利用污染控制》（DB 23/T 1413-2010）中的要求。
- Exhaust：Achieved “Emission standard of pollutants for petroleum chemistry industry”（GB31571-2015） & “Pollution control standard for hazardous wastes incineration”（GB 18484-2001 ）
- Wastewater：The condensed water of the equipment is recycled, and a small amount of other wastewater will enter the oilfield water treatment system after treatment.
- Waste residue: The oil content is compliance with relevant standards, and the heavy metal contents were lower than the state standards.After treatment, the sludge can be used to pad well site, pave roads and be used as building
- materials:achieved the local standard of Shaanxi province “Limits for the disposal and utilization of oily sludge" (DB61T_1025-2016) and Heilongjiang “Pollution control standards of oily sludge comprehensive utilization of the oilfield" (DB 23/T 1413-2010).
